| 工作原理 | 常压 |
|---|---|
| 适用对象 | 口服液 |
| 售后服务 | 一年保修 |
| 适用行业 | 医药 |
| 物料类型 | 液体 |
| 包装类型 | 瓶 |
| 品牌 | 飞驰 |
| 型号 | GFJ系列 |
| 加工定制 | 是 |

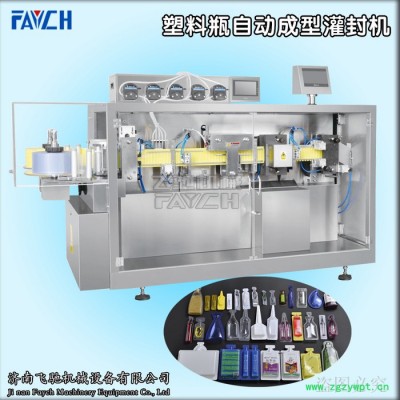

塑料瓶自动成型灌封机Plastic bottle automatic molding filling and sealing machine
GFJ-120性能及特点GFJ-120 performance and characteristics
1、PLC控制，无级变频调速。
2、放卷，塑料成型，灌装，打批号，压痕，切尾，分切等7个工位由程序自动完成。
3、人机界面装置，操作简单明了。
4、灌装头不滴漏，不起泡沫，不溢出。
5、与药接触的部位采用优质不锈钢316L，机器外罩全部是SUS304不锈钢。符合GMP标准。
6、主要气动元件，电器采用进口配件。
7、采用电子蠕动泵自控灌装系统或机械泵活塞泵控制，计量准确误差小，调正方便。
1. PLC control, stepless frequency conversion speed regulation.
2. The 7 stations of unwinding, plastic molding, filling, batch numbering, creasing, tail cutting, and slitting are automatically completed by the program.
3. The man-machine interface device, the operation is simple and clear.
4. The filling head does not drip, foam or overflow.
5. The parts in contact with the medicine are made of high-quality stainless steel 316L, and the outer cover of the machine is all SUS304 stainless steel. Comply with GMP standards.
6. The main pneumatic components and electrical appliances adopt imported accessories.
7. Using electronic peristaltic pump automatic control filling system or mechanical pump piston pump control, the measurement accuracy is small and the adjustment is convenient.
用途Use
口服液，液体，农药，香水，化妆品，果浆，食品类，饮料，乳制品等。
Oral liquids, liquids, pesticides, perfumes, cosmetics, fruit pulps, foods, beverages, dairy products, etc.
主要技术参数 Main technical parameter
| 型号Model | GFJ-120(P2) | GFJ-120(P5) | GFJ-240(P5) |
| 灌装头数Number of filling heads | 2头 | 5头 | 5头（可按用户要求增减少） |
| 最大成型深度Max. forming depth | 单面12mm | ||
| 冲裁次数Number of blanking | Max=25冲/分钟（变频调速） | ||
| 包装材料Packing material | PVC/PE，PET/PE，PVC/EVOH/PE , 厚度（0.2-0.4） | ||
| 最大包材宽度Max. package width | Max=120mm（双卷膜） | Max=240mm（单卷膜） | |
| 最大板块尺寸（行程x高度）Max.plate size (stroke x height) | 65x120mm 厚度＜25mm | 128x120mm 厚度＜25mm | |
| 牵引方式Traction method | 标配机械牵引（可选伺服牵引）Standard mechanical traction (optional servo traction) | 伺服牵引Servo traction | |
| 灌装容量Filling capacity | 0.1-50ml | ||
| 电源总功率Toal power supply power | 220V/380V4.3KW | 220V/380V 6.5kw | 220V/380V 7kw |
| 重量Weight（kg） | 700 | 950 | 1200 |
| 外形尺寸Dimensions (L*W*H) | 1750×750×1400 | 2400×850×1500 | 3200x850x1600 |

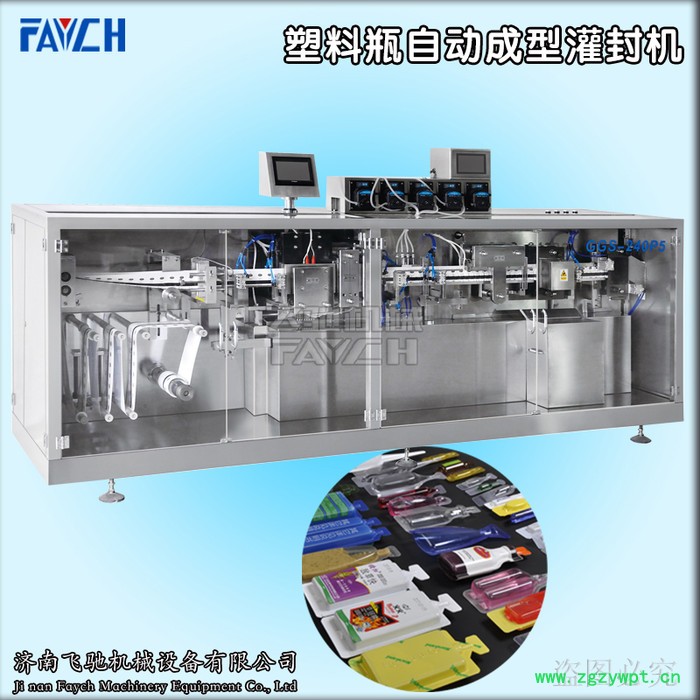

GFJ-240性能及特点GFJ-240 performance and characteristics
1、HC高速高精度高端运动控制器。无级变频调速控制。伺服电机控制拉膜装置
2、自动放卷，卷膜分切。有光电正反面图案对版功能。产品精美，满足高标准的包装要求。
3、瓶子底部是平的，可以立起来。
1. HC high-speed high-precision high-end motion controller. Stepless frequency conversion speed control. Servo motor control film pulling device
2. Automatic unwinding and film slitting. Have photoelectric front and back pattern matching function. The products are exquisite and meet the high-standard packaging requirements.
3. The bottom of the bottle is flat and can stand up.
