| 别名 | 药丸机 |
|---|---|
| 功率 | 3 |
| 生产率 | 标准 |
| 适用范围 | 制药工业 |
| 适用行业 | 药店,诊所,中医医院药房 |
| 品牌 | 飞驰 |
| 型号 | ZW-369D |

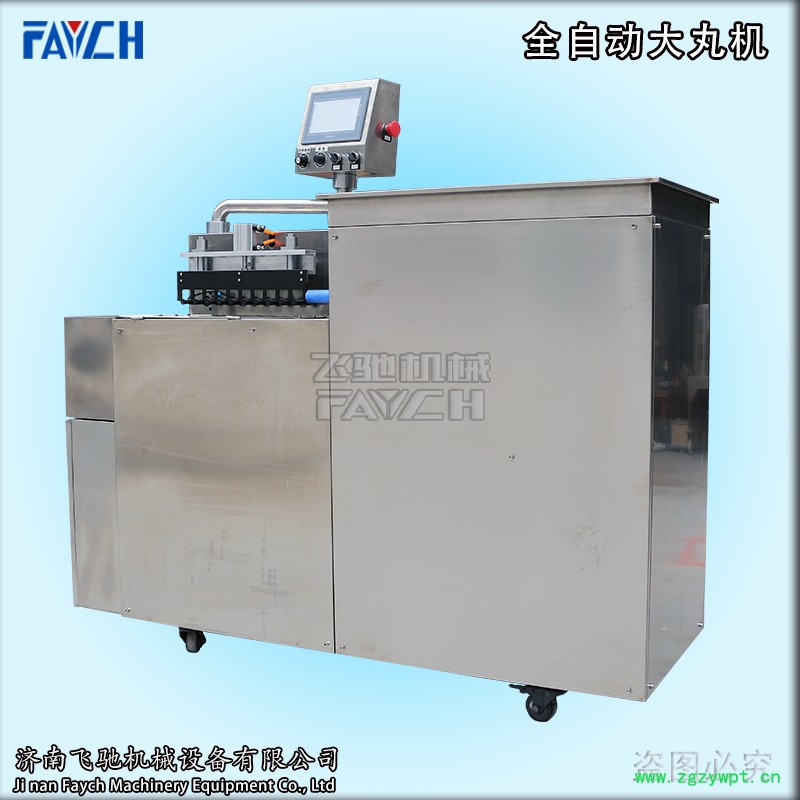

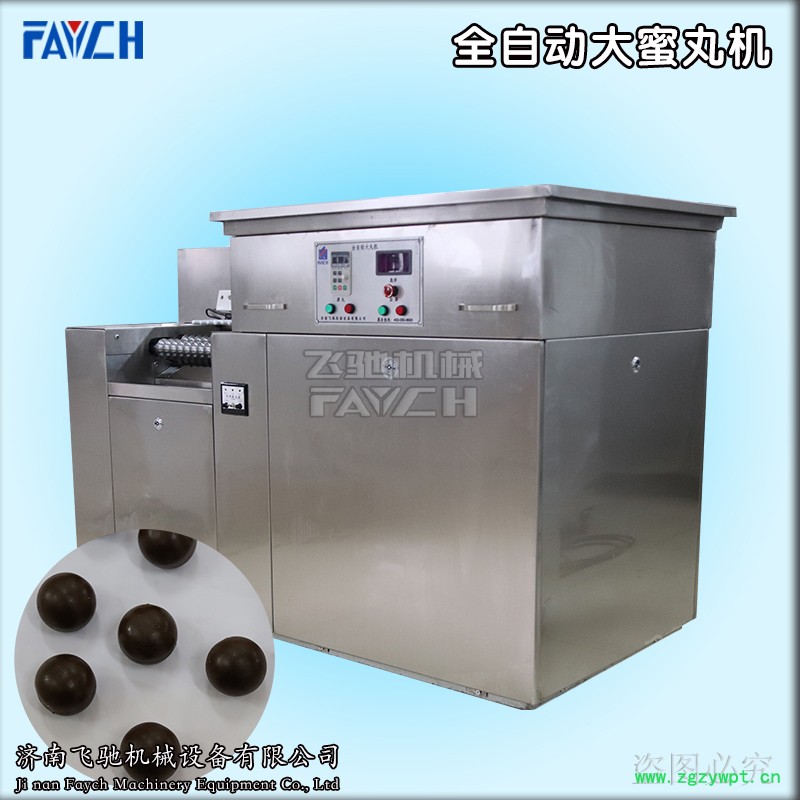

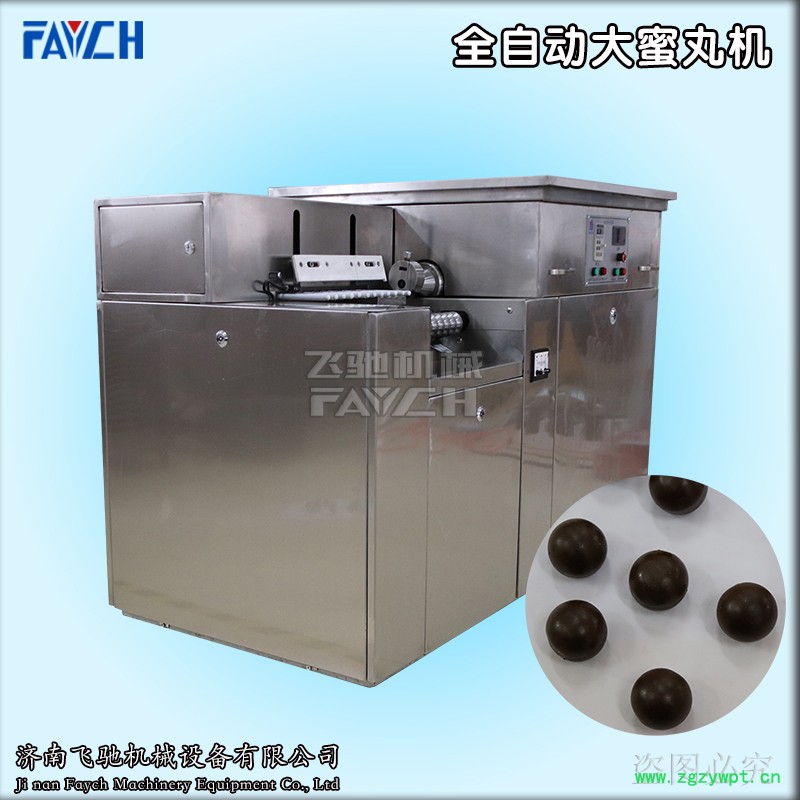

全自动大蜜丸机实现从喂料、出条、推条、分切、滚丸、除药条等自动连续工作，周而复始。该机根据中、小型药厂、中医医院、诊所、食品厂、制剂室产量小品种多等特点，是我公司新研制开发的小型全自动蜜丸机，具有体积小、操作简便、清洗方便等特点。The automatic big honey pill machine realizes automatic and continuous work from feeding, discharging, pushing, slitting, rolling, and removing medicine strips, etc. According to the characteristics of small and medium-sized pharmaceutical factories, Chinese medicine hospitals, clinics, food factories, preparation rooms, etc., the machine is a small automatic honey pill machine newly developed by our company. It has small size, simple operation, convenient cleaning, etc. Features.
一、适用范围：Scope of application
可生产品种：中药丸（大蜜丸）、黑芝麻丸、山楂丸、红豆薏米丸、紫薯丸、食用糖丸、丸状食品、球状食品等。Varieties that can be produced: Chinese medicine pills (big honey pill), black sesame pill, hawthorn pill, red bean barley pill, purple potato pill, edible sugar pill, pill-shaped food, spherical food, etc.
二、特点：Features
1.输送器与物料接触部位，采用不锈钢材料制作，其速度为无级调速，保证各种规格料条的出条速度。
2.采用光电传感器控制切条长度，保证药条长度一致，每条制品数量恒定，药头短小，且药头与成品分流，免去在成品中挑选药头。
3.采用间歇运动机械手（ZW-369S为气缸控制）切推料条，结构紧凑。
4.电气系统采用PLC控制，设置更方便快捷。（ZW-369S）
5.采用仪器制作搓丸辊，以保证动辊和固定辊的分切间距在允许偏差内。
6.采用标准和专用机电元件，一旦发生故障可及时在市场和我公司采购，减少停产损失。
7.采用不锈钢板整机封闭，无污染，易清洁，符合GMP要求。
8.生产过程中可涮食用油或酒精。防止蜜丸粘模具。
1. The contact part of the conveyor and the material is made of stainless steel, and its speed is steplessly adjustable to ensure the speed of various specifications of strips.
2. The photoelectric sensor is used to control the cutting length to ensure that the length of the medicine is consistent, the number of each product is constant, the medicine head is short, and the medicine head and the finished product are separated, eliminating the need to select the medicine head in the finished product.
3. It adopts intermittent motion manipulator (ZW-369S is air cylinder control) to cut and push the material strip, with compact structure.
4. The electrical system adopts PLC control, making the setting more convenient and quicker. (ZW-369S)
5. Use precise instruments to make the pill roller to ensure that the slitting distance between the moving roller and the fixed roller is within the allowable deviation.
6. Using standard and special electromechanical components, in case of failure, it can be purchased in the market and our company in time to reduce the loss of production shutdown.
7. The whole machine is closed with stainless steel plate, no pollution, easy to clean, and meets GMP requirements.
8. Cooking oil or alcohol can be rinsed during the production process. Prevent the honey pill from sticking to the mold.
三、技术参数：Technical parameter
| 型 号 | ZW-369S | ZW-369D | |
| 电 压（V） | 220/380 | ||
| 功 率（KW） | 3 | 4 | |
|
理论产量 | 3g（15mm） | 14000~15000丸/时 约42~45kg/h | |
| 6g（19mm） | 10000~11000丸/时 约60~66kg/h | ||
| 9g（23mm） | 7000~8000丸/时 约70~80kg/h | ||
| 压 缩 空 气 | ≥0.5Mpa | 无 | |
| 外 形 尺 寸（mm） | 1580x680x1280 |
| |
| 重 量（kg） | 350 | 380 | |
可按客户要求定制不同直径模具Different diameter molds can be customized according to customer requirements。
