| 产地 | 山东 |
|---|---|
| 电机功率 | 3KW |
| 功率 | 3KW |
| 进料粒度 | ﹤10mm |
| 类型 | 专用研磨机 |
| 生产能力 | 其他 |
| 适用物料 | 干粉 |
| 外形尺寸 | 1450x990x1650mm |
| 粉碎程度 | 超微粉碎 |
| 品牌 | 飞驰 |
| 型号 | ZD-20 |
| 是否加工定制 | 是 |

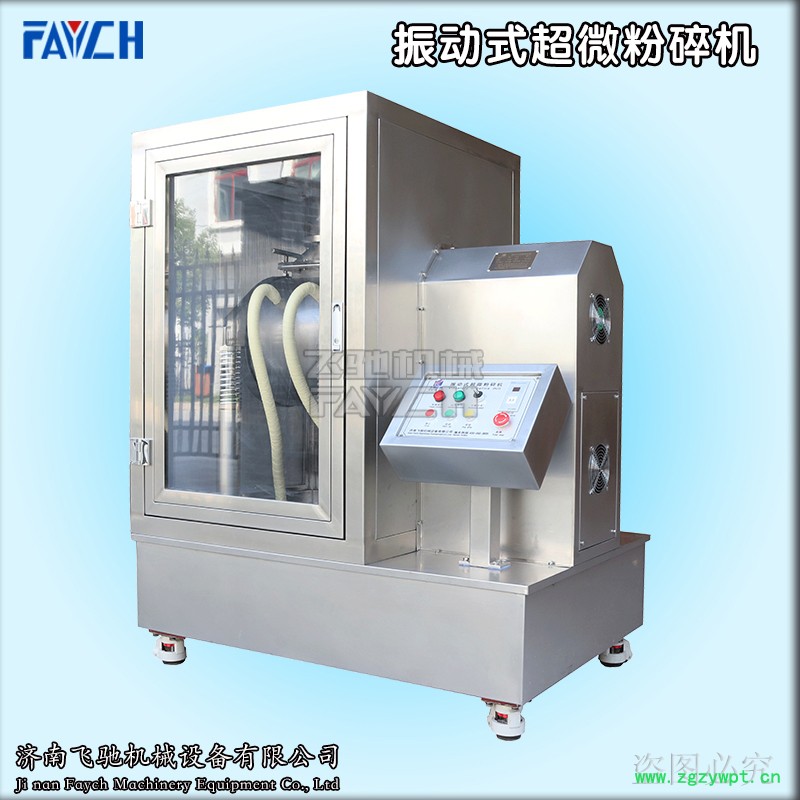

山东中药超微粉碎机采用了下列先进技术
| 型 号Model | ZD-6 | ZD-12 | ZD-20 | ZD-50 | ZD-100 | ||
| 公称容积Nominal volume(L) | 6 | 12 | 20 | 50 | 100 | ||
| 处理量Capacity(kg/h） | 1～3 | 3～8 | 8～15 | 10～30 | 25～75 | ||
| 翻转机构Flip mechanism | 手动翻转Manual flip | 电动翻转Electric flip | |||||
| 粉碎细度Grinding fineness | 50-3000目 | ||||||
| 磨筒壁厚Mill wall thickness | ≥8mm | ≥12mm | |||||
| 主轴承Main bearing | NSK/日本精工 | ||||||
| 冷却方式Cooling method | 标配循环水冷Standard circulating water cooling/低温制冷（另配）Low temperature refrigeration (optional) | ||||||
| 电 压Voltage(V) | 220 | 220/380～50HZ(三相四线) | 380～50HZ(三相四线) | ||||
| 功率Power(kw) | 0.75 | 1.5 | 3 | 9 | 12.5 | ||
| 外形尺寸Dimensions(mm) | 960x600x1100 | 1350×900×1550 | 1350X1000X1650 | 2100×1200×2000 | 2300×1500×2300 | ||
| 重量Weight(kg) | 110 | 550 | 650 | 1100 | 1800 | ||

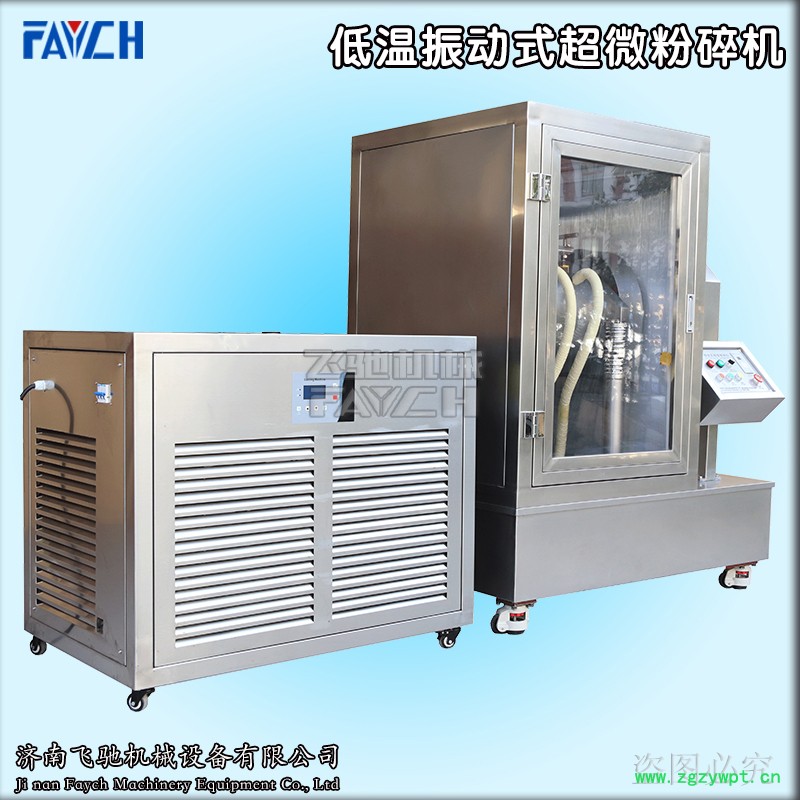

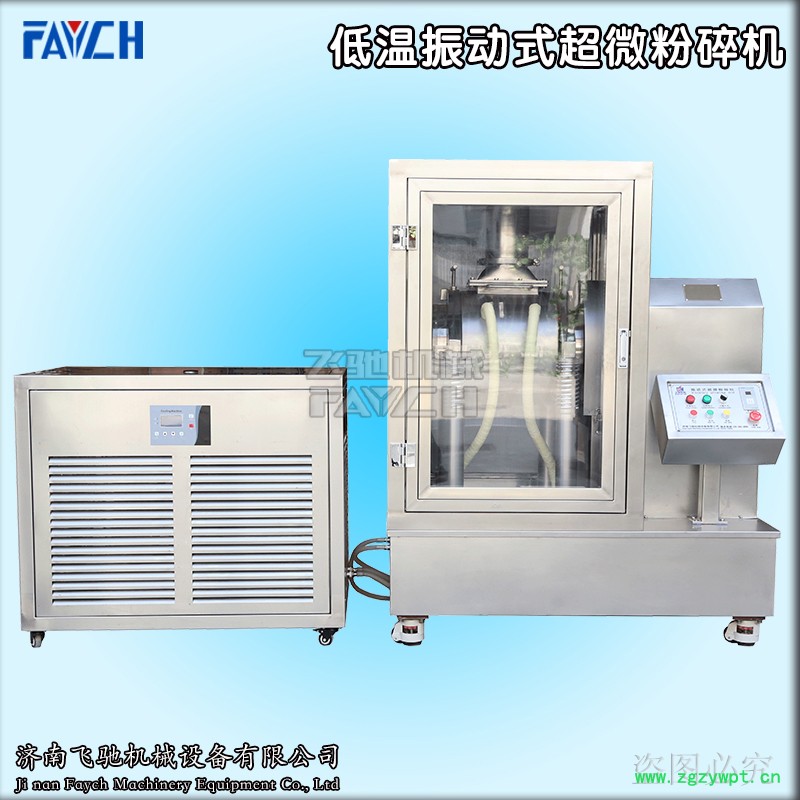

| 低温制冷系统Low temperature refrigeration system (optional) | |||||||
| 名称Name | 型号Model | 电压Voltage | 功率power | 制冷量Cooling capacity | 外形尺寸Dimensions | 水箱容积Water tank volume | 重量Weight |
| 制冷机 | FC-D22-2P | 220V | 1.6KW | 2800W(低-22度) | 1120x720x920mm | 20L | 110kg |
| FC-D25-3P | 220V | 2.4KW | 3500W(低-25度) | 1120x720x920mm | 20L | 115kg | |
| FC-D35-3P | 380V | 2.4KW | 3500W(低-35度) | 1120x720x920mm | 20L | 130kg | |
| FC-D35-6P | 380V | 4.5KW | 6000W(低-35度 | 1120x720x920mm | 40L | 160kg | |
各种容量都可以定做。Various capacities can be customized.
