| 厂家 | - |
|---|---|
| 牌号 | - |
| 用途级别 | - |
| 品牌 | 富和 |

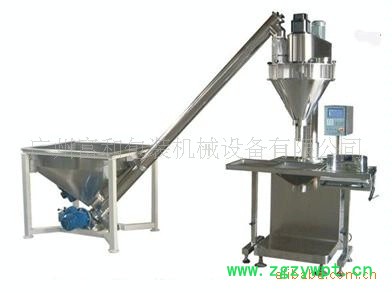

| 型号 | FHG-500F半自动粉剂灌装机 |
| 重量:150 | 产品别名:半自动粉剂灌装机 |
| 适用范围:50-500 |
该机采用PCL控制系统，为半自动粉体充填设备，可用于灌装各种非自流性质粉体。如:面粉、调味粉、奶粉、豆奶粉、中医药等。
It used for packing all kinds of powder products, such as milk powder, bean powder, flour and so on.
Semi-automatic finishthe processes of pouch forming, filling,
Sealing, cutting, date printing for pillow pouch packaging.
PLC controller and A pattern calibration photoelectric control
device ensure the patterns will be complete and beautiful.
主要技术参数TECHNICAL SPECIFICATIONS
型 号Model | FHG-500F |
灌装物料 |
|
计量范围Measuring range | 50-500ml |
计量方式 | 螺杆式计量 |
灌装速度Filling Speed | 20-50次/分 |
总功率Power | 550W |
重 量Weight | 150kg |
外形尺寸Overall Dimension | 600×600×1600mm |
