| 工作原理 | 详见说明 |
|---|---|
| 功率 | 详见说明 |
| 灌装精度 | 详见说明 |
| 灌装量 | 详见说明 |
| 灌装头数 | 详见说明 |
| 生产能力 | 详见说明 |
| 适用对象 | 果汁饮料,酒类饮料,矿泉水、纯净水,护发用品,清洁、洗涤用品,酱类,口服液,药水 |
| 适用瓶高 | 详见说明 |
| 适用瓶径 | 详见说明 |
| 外形尺寸 | 详见说明 |
| 适用行业 | 餐饮,食品,日化,医药,**,化工 |
| 物料类型 | 详见说明 |
| 自动化程度 | 详见说明 |
| 包装类型 | 详见说明 |
| 品牌 | 锐腾 |
| 型号 | 详见说明 |
| 加工定制 | 详见说明 |

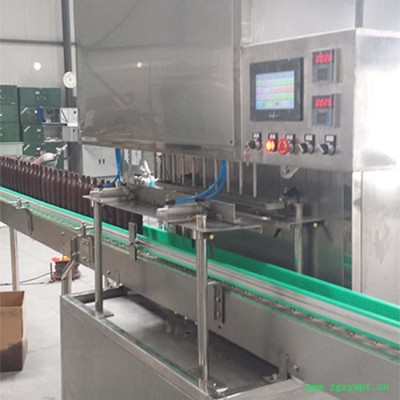

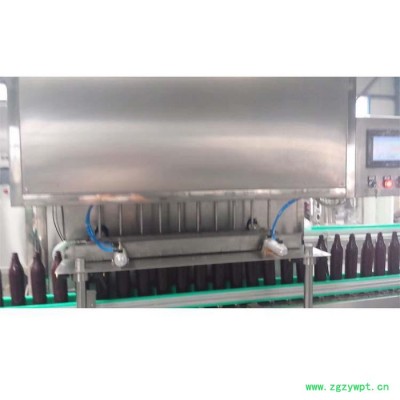

直线液体灌装机
直线灌装机是一种由微电脑（PLC）可编程控制，光电传感，气动执行于一体的高新技术灌装设备。本机型分为压力式灌装、常压灌装、下潜式灌装、尤其下潜式灌装主要用于容易起泡沫的液体灌装。他设计有一套下潜灌装机构，下料管可下潜到瓶底部以消除泡沫的产生。灌装计量精确，无气泡，无滴漏。适用灌装矿泉水、果汁、茶饮料、酱油、醋、调味品、中成药、生物制剂、农药、日用品等。可适用于300-10000ml各种瓶形（包括异型瓶）的灌装。
型号 | 灌装范围 | 灌装速度(瓶/时) | 电机功率(kw) | 质量 (kg) | 尺寸 (mm) |
RFC-6 | 300-10000 | 1200 | 0.55 | 500 | 1800×650×2100 |
RFC-8 | 300-10000 | 1500 | 0.55 | 500 | 1800×650×2100 |
RFC-10 | 300-10000 | 1700 | 0.75 | 550 | 2000×650×2100 |
RFC-12 | 300-10000 | 2000 | 1.1 | 600 | 2000×650×2100 |
The linear filling machine
Thelinear filling machine is a high-tech PLC controlled filling equipmentintegrating photoelectric sensing and pneumatic action. The machine includespressure type filling, normal pressure filling and submersible filling.Especially, the submersible filling is used for filling liquids that easilyfoam. It is designed with a set of submersible filling mechanism. The feedingtube can submerge into the bottle bottom to eliminate the foams. With accuratefilling measurement, there is no bubble and no leakage. It is used for fillingmineral water, fruit juice, tea beverage, soy sauce, vinegar, seasoning,Chinese patent medicine, biological agent, pesticide, daily commodity and etc.It is suitable for filling all kinds of bottles (including irregular bottles)ranging from 300 to 10000 ml.
MainSpecifications:
Model | Filling range
| Filling speed(B/h) | Power (kw) | Weight (kg) | Dimension (mm) |
RFC-6 | 300-10000 | 1200 | 0.55 | 500 | 1800×650×2100 |
RFC-8 | 300-10000 | 1500 | 0.55 | 500 | 1800×650×2100 |
RFC-10 | 300-10000 | 1700 | 0.75 | 550 | 2000×650×2100 |
RFC-12 | 300-10000 | 2000 | 1.1 | 600 | 2000×650×2100 |
