品牌：蓝晨机械
适用范围：通用
外形尺寸：多种可选
起订：1套
供应：50套
| 适用范围 | 通用 |
|---|---|
| 外形尺寸 | 多种可选 |
| 营销 | 新品 |
| 杀菌设备类型 | 其他 |
| 品牌 | 蓝晨 |
| 型号 | LC-SR系列 |
| 加工定制 | 是 |

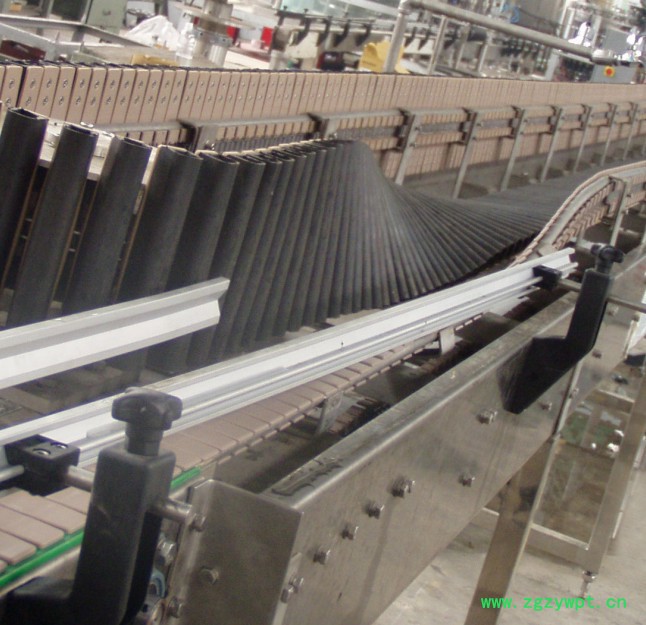

本机是为热灌装生产线后期瓶盖消毒而设计的专用设备。它是以电机减速机通过链轮带动特殊的输送链，使包装容器在输送中实现在线倒瓶，达到工艺要求的杀菌时间，再自动直立，从而实现从倒瓶倒杀菌再到直立的过程。
根据客户的需要，可进行直道倒瓶和弯道倒瓶的设计，并可根据客户要求的生产线长度或杀菌时间进行杀菌机的特殊设计及电机功率配置。
Overview
This machine is designed for hot filling production line later cap disinfection dedicated equipment. It was based on the motor Reducer by sprocket drive special conveyor chain, to realize online in transport packaging container Bottle, meet the process requirements of the sterilization time, and then automatically upright, so as to realize from the bottle, pour the sterilization Again the process of upright.
According to the needs of customers for straight bottle and bend down the design of the bottle, and can according to the customer The requirements of the production line length or sterilization time for sterilization machine of special configuration design and motor power.
技术参数
▲设备型号：SR
▲杀菌时间：30s
▲适用瓶型：聚脂PET瓶或玻璃瓶(高度不超过300mm)
▲能源：交流三相四线制(380V，50Hz)
▲总功率：一般2.6kw
▲设备尺寸(长 x 宽 x 高)：
SR100：9500 x 600 x 1160
SR200：11000 x 600 x 1160
SR300：18500 x 600 x 1160
Technical Parameters
▲Machine type: SR
▲Sterilized time: 30s
▲Bottle types applicable: PET bottles or glass bottles(the bottle height no more than 300mm)
▲Power: AC,thtee-phase-four-wire system(380V,50Hz)
▲Total power: normally 2.6Kw
▲Equipment size (L x W x H):
SR100: 9500 x 600 x 1160
SR200: 11000 x 600 x 1160
SR300: 18500 x 600 x 1160
