品牌：上海钦典机械制造有限公司
加工定制：是
材质：不锈钢
起订：1件
供应：100件
| 加工定制 | 是 |
|---|---|
| 材质 | 不锈钢 |
| 包装层次 | 外包装 |
| 工艺 | 精细 |
| 用途 | 休闲食品包装 |
| 规格 | 3-15克 |
| 包装型式 | 包装袋 |
| 型号 | QD-18II |

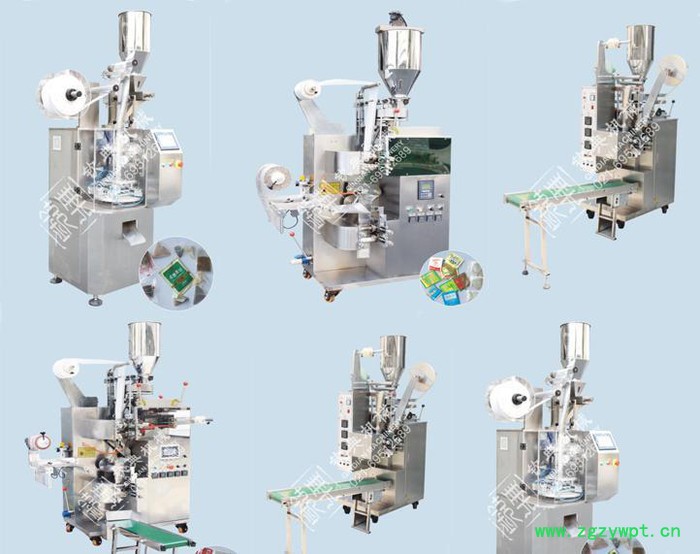

一，机器图片
二，产品资料
QD-18-II型袋泡茶内外袋挂线挂标包装机
一、适用于：
茶叶、咖啡、中草药、植物等过滤性物品
二、特点：
本机是一种新型热封式，多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型，避免了人手与物料的直接接触，提高效率。内袋为过滤棉纸，可自动带线带标签，外袋为复合纸。其最大的好处在于：贴标和外袋均可采用光电定位，包装容量、内袋、外袋、标签等均可任意调整，可根据用户的不同需要来调整内外袋尺寸，以便达到最理想的包装效果，提高产品外观档次，使产品价值提升。
三、包装材料：过滤绵纸、棉线、标签纸、铝箔纸
包装速度:30-60袋/分钟
标签尺寸:宽：35-55mm长：20-40mm
线长: 155mm
内袋:宽：50-80mm长：50-80mm
外袋:宽：70-100mm长：80-140mm
电源: 220V 60Hz110V 50HZ 3.5KW
外型尺寸:(L×W×H)900×610×1500mm
整机重量: 500Kg
QD-18-I I Teabag Inner and outer bag Packing Machine
Functional Features :
The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.
Application:
Be suitable for the dual bag packing of small grain-like materials, such as tea leaf, coffee, Chinese traditional medicine and healthy tea etc.
Pack materials:
paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea paper,thred,tag
Specification：
Packing Capacity | 3-15ml |
Packing Speed | 35-60 bags/min |
Tag Dimension | (L)：20-24mm; (W)：40-55mm |
Length of Thread | 155mm |
Dimension for Inner Bag | (L)：50-100mm; (W)：50-80mm |
Dimension for Outer Bag | (L)：80-130mm; (W)：70-110mm |
Power | 200V /50Hz / 3.7KW |
Outline Dimension | (L×W×H)1200×900×1900mm |
Machine Weight | 500Kg |
QD—60BS输送斗包装机
一、主要特点：
本机可自动完成制袋、计量、充填、封合、商标定位、切断、计数、无级调速等功能。可以根据物料的所需，增加注水等辅助功能。
二、适用范围:
本机适用于食品工业等行业中较大包且不规则物料的包装，例如茶叶，螺丝，五金用品，玩具、海蜇皮、螺丝、饼干、香皂等物料。
三、性能参数：
机型 | QD-60S (带输送链斗) |
制袋容积 | 20～200ml |
制袋长度 | 长:40～250mm 宽: 80～280mm |
包装速度 | 20～50袋/分钟 |
整机重量 | 350kg |
外形尺寸 | 80×64×1600mm(不含输送带长) |
输入电源 | 220V |
总功率 | 1.6KW |
Main performance and structure features:
This machine can automatically complete the processes of bag-making measuring, filling, sealing, trademark location, cutting, counting and stepless adjusting speed. It has the accessory function that it can increase the water according to the requirement of materials.
Application area:
This machine is suitable for packing big bag and irregular foods and industry, such as jellyfish skin, snails, biscuits, soap and so on.
Specification:
Model | CH-230(with transporting chain) |
Bag’s capacity | 20-200(ml) |
Bag’s length | L:40-250mmW:80-280mm |
Packing speed | 20-50bags/min |
Machine weight | 350kg |
Outline dimesion | 800*640*1600mm(without length of transporting chain) |
Power supply | 220v |
Total power | 1.6kw |
