飞驰专业生产 粉剂胶囊灌装机 全自动粉剂填充机 小型全自动胶囊填充机

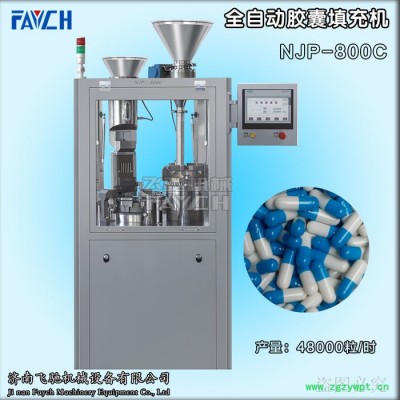

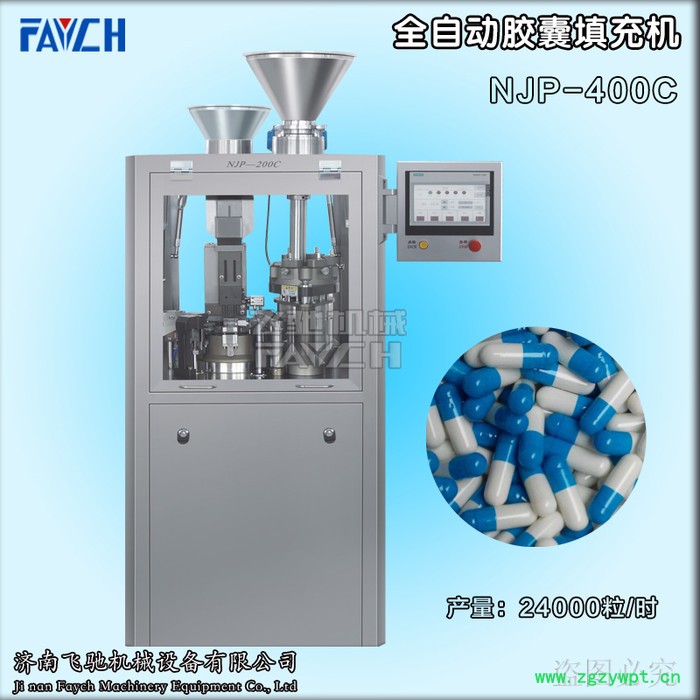

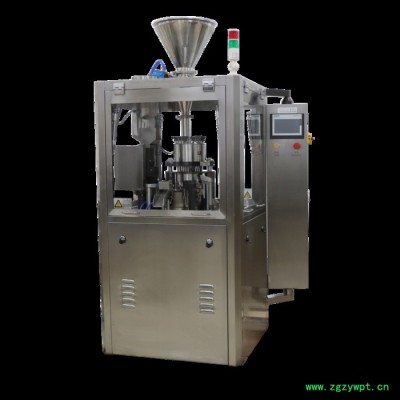

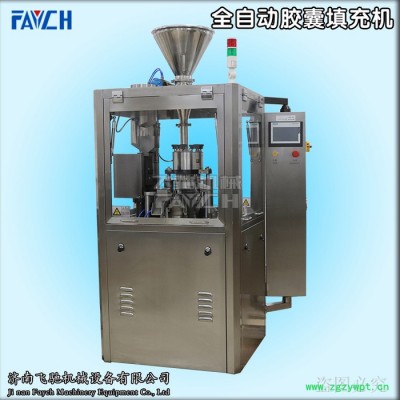

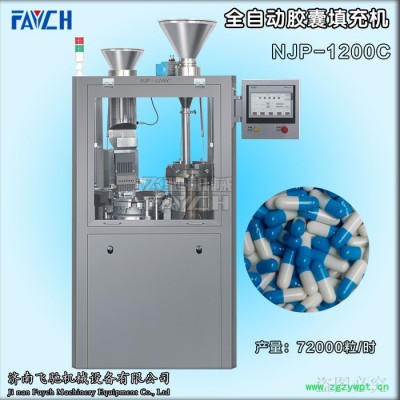

NJP系列全自动胶囊充填机是将粉状、颗粒或小片等物料充填入空心胶囊内的设备,该产品采用孔塞式充填、间歇式运转、变频调速、适用于粉状或微丸状胶囊剂药品自动完成播囊、分囊、充填、（废囊剔除）锁囊、成品推出等工作,是我厂吸收国内外同类产品的优点结合国内实际情况，自行研制的充填机器，生产过程完全符合GMP规范。 (英文：NJP series automatic capsule filling machine is a device for filling powder, granules or small tablets into hollow capsules. The product adopts plug filling, intermittent operation, frequency conversion speed regulation, suitable for powder or pellet capsules The medicines automatically complete the work of sowing, separating, filling, (waste squeezing) locking, and launching finished products. It is the filling machine developed by our factory to absorb the advantages of similar products at home and abroad combined with the actual situation in China. The production process is fully in line with GMP specification.)

主要特点：（Main feature:）

    1、新型转盘机构：采用新型转盘机构：稳定性好、无论充填速度多快、运行时间多长、都没有粉尘进入转盘内，装拆模具快捷方便（15分钟）减少了劳动强度，在原基础上提高功效三倍。安装模具，上下模具孔同心度好、无偏差、达到了胶囊无插边效果。

    2、新型充填机构：新型充填机构优点是：?安装拆卸清洗方便，有效提高了工作效率。?方便快捷调节计量盘与铜垫片间隙，减少了漏粉现象，提高了装量精度。?改用了新型拖座，安装了自动回收药粉结构，生产充填过程中漏出的药粉自动回收，增加了经济效益。

     3、药粉与废胶囊分离装置：有效的回收流失的药粉。回收后的药粉可直接充填使用，减少了浪费，增加了经济效益。

     4、配有点动控制系统，便于装拆清洗模具、安全方便、快捷。胶囊关、开自动控制，安全、便捷。

     5、配有自动清洁模具系统，自动清洗上下模具孔，清洗后的上下模具孔内无粉尘。有效提高了播囊效果。

     6、料斗缺囊缺粉时自动报警、自动停机功能。

     7、人机界面功能齐全，生产运行时自动显示计数功能，如有需要可另配打印功能（生产日期、生产批号、生产数量等）

8、可另配门控系统、机械故障安全系统、自动润滑供油系统、自动报警、自动停机。

（英文：1. New type turntable mechanism: new type turntable mechanism: good stability, no matter how fast the filling speed is, how long the running time is, no dust enters the turntable, quick and easy assembly and disassembly of the mold (15 minutes) reduces labor intensity, on the basis Threefold increase in efficacy. The installation of the mold is accurate, the upper and lower mold holes have good concentricity, no deviation, and the effect of no capsule insertion is achieved.

    2. New filling mechanism: The advantages of the new filling mechanism are: easy installation, disassembly and cleaning, and effectively improve the working efficiency. It is convenient and quick to adjust the gap between the measuring disc and the copper gasket, reducing the phenomenon of powder leakage and improving the accuracy of the loading. A new type of pedestal is used, and a structure for automatic recovery of powdered medicine is installed. The powdered medicine leaked during the production and filling process is automatically recovered, which increases economic efficiency.

     3. Separating device for medicine powder and waste capsule: effectively recover the lost medicine powder. The recovered medicine powder can be directly filled and used, reducing waste and increasing economic benefits.

     4. Equipped with a jog control system, which is convenient for assembly, disassembly and cleaning of the mold, safe, convenient and fast. Capsules are automatically controlled by closing and opening, safe and convenient.

     5. Equipped with automatic mold cleaning system to automatically clean the upper and lower mold holes. There is no dust in the upper and lower mold holes after cleaning. Effectively improve the effect of sowing.

     6. Automatic alarm and automatic shutdown function when the hopper is short of powder or powder.

     7. The man-machine interface has complete functions, and the counting function is automatically displayed during production operation. If necessary, it can be equipped with a printing function (production date, production batch number, production quantity, etc.)

8. It can be additionally equipped with door control system, mechanical failure safety system, automatic lubrication oil supply system, automatic alarm and automatic shutdown.）

技术参数（英文：Technical Parameters）
